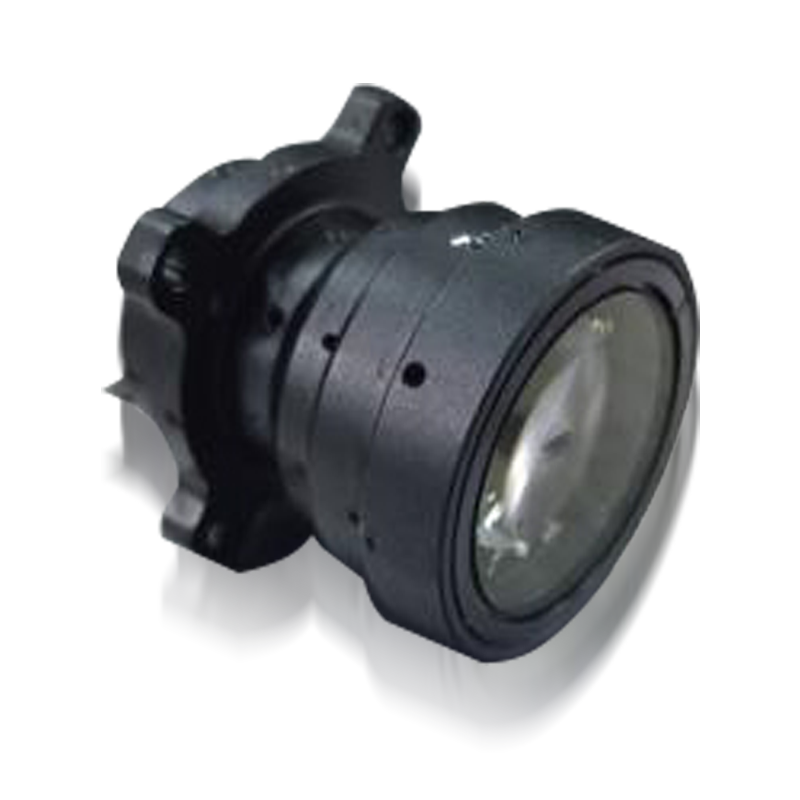

Star Tracker Lens
Equipment Accuracy:Star tracker lens is the core precision optical component of the attitude measurement system for satellites and aerospace vehicles. As the optical front end of star trackers, it is specially used to capture star images, extract star centroid and match star catalogs in complex space lighting environments, achieving sub-arcsecond attitude determination and orientation. It serves as an indispensable "space eye" for modern aerospace platforms such as microsatellites, launch vehicles and space stations, providing stable, reliable and high-precision optical data support for orbit maintenance, payload pointing and interstellar navigation of vehicles.
Detailed Introduction:### I. Core Functions
Collect stellar light and form high-quality images on the detector focal plane.

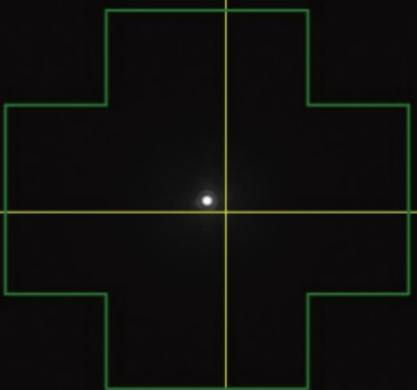

Provide distortion-free and highly stable star centroid coordinates to support attitude calculation.
Suppress interference from stray light, sunlight and Earth light to ensure all-day star measurement.
Provide a reference for satellite attitude control, orbit determination and laser communication pointing.

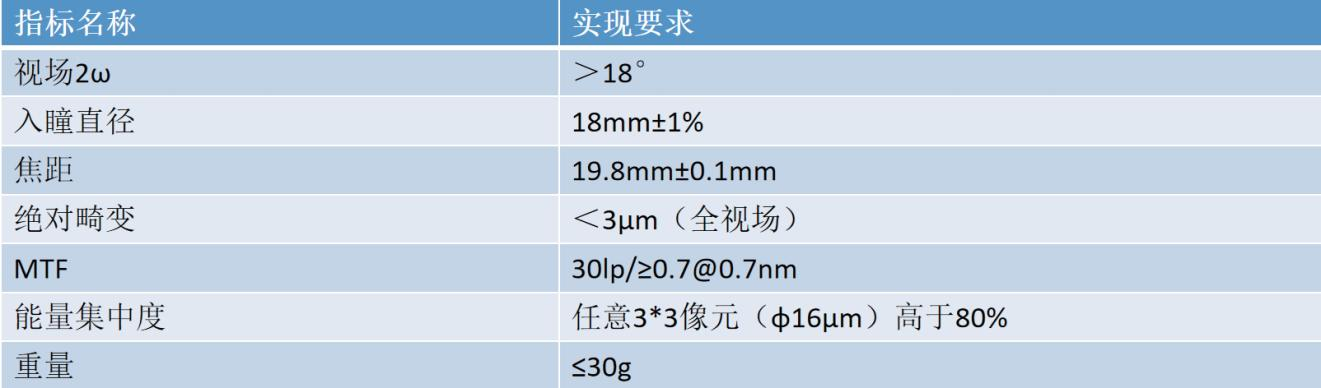

### II. Key Technical Characteristics
Ultra-low distortion: distortion < 0.01%, ensuring sub-pixel accuracy of star centroid positioning.
High transmittance: broadband anti-reflection coating, enabling strong detection capability for dim stars.

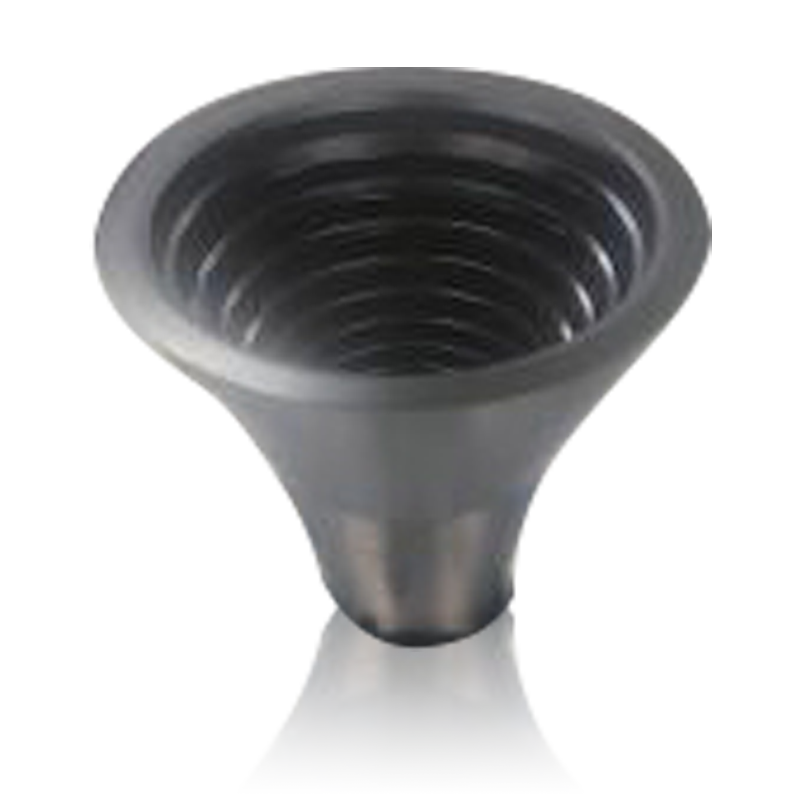

Ultra-low stray light: multi-stage shading, internal surface extinction and optimized diaphragms.
High stability: athermal design, ensuring consistent imaging over a wide temperature range.
Space-grade reliability: radiation resistance, vibration and shock resistance, long service life.
Lightweight and compact design: suitable for CubeSats, nano-satellites and micro-satellites.
### III. Typical Structure and Design
Combination of multiple spherical/aspherical lenses, mainly transmissive structure.
Front diaphragm with large relative aperture (F#1.2–F/2.8).
Wide field of view (10°–30°), balancing star acquisition speed and attitude determination accuracy.
Space-grade optical glass, resistant to space environment aging.
### IV. Application Scenarios
Satellites: attitude determination for communication, remote sensing, navigation and meteorological satellites.
Deep space exploration: attitude reference for lunar/Mars probes and manned spacecraft.
Commercial aerospace: CubeSats, micro-nano satellites and recoverable rockets.
Aviation/near space: high-altitude UAVs and daytime star measurement systems.
### V. Core Value
The star tracker lens directly determines attitude accuracy, star detection sensitivity and environmental adaptability. It is an irreplaceable core optical component for high-resolution remote sensing, space laser communication and deep space exploration missions.
